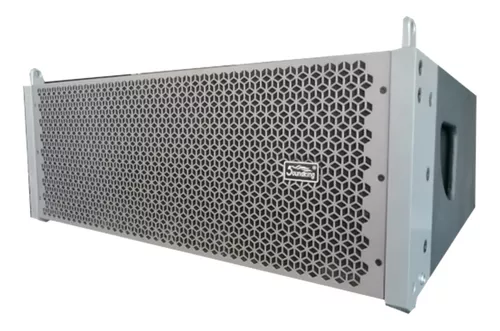

Soundking Line array G210S

Description

PASSIVE TWO-WAY LINE ARRAY MODULE

Feature:

G210 uses two 1.75-inch HF compression driver and two 10 inch chassis units to form a group with great headroom.

Impedance adopts 8 Ω design, and two loudspeaker can be connected in parallel.

0 ° and 10 ° adjustment.

The loudspeaker cabinet is made of birch plywood, and the external surface is sprayed with water-based environmental protection wear-resistant sand paint.

The flexible multi group application mode can be used in flying and stacking, and can be perfectly used in all kinds of sound reinforcement occasions.

Application:

Large touring show, medium-size stadium, multifuction hall, church, etc.

Product Description

The G210 line array loudspeaker is a two crossover system with smooth frequency and phase response.

Two 44mm HF compression driver and two 10 “chassis form a mid HF system, which greatly reduces the weight of the cabinet and provides an extremely high sound pressure/volume ratio. The HF audio waveform is converted from spherical wave to equal phase plane wave through a plane wave converter, which greatly reduces the HF comb filtering effect, greatly improves the clarity of sound over long distances.

At the same time, a 120 degree exponential curve constant pointing horn is combined to produce a consistent wave front. The cabinet of G210 is trapezoidal, and the gap between the cabinet and the cabinet has been reduced to the minimum, thus reducing the invalid sound producing area of the whole array and minimizing the vertical side lobe of the array. The line array is equipped with a precision aluminum alloy lifting system.

The connection angle between the cabinet and the cabinet can be adjustment. The connection link on the back of the cabinet can be adjustment at any time between 0 ° and 10 ° to meet the needs of different occasions. Two embedded handles flush with the cabinet are installed on both sides of the loudspeaker for easy handling.
