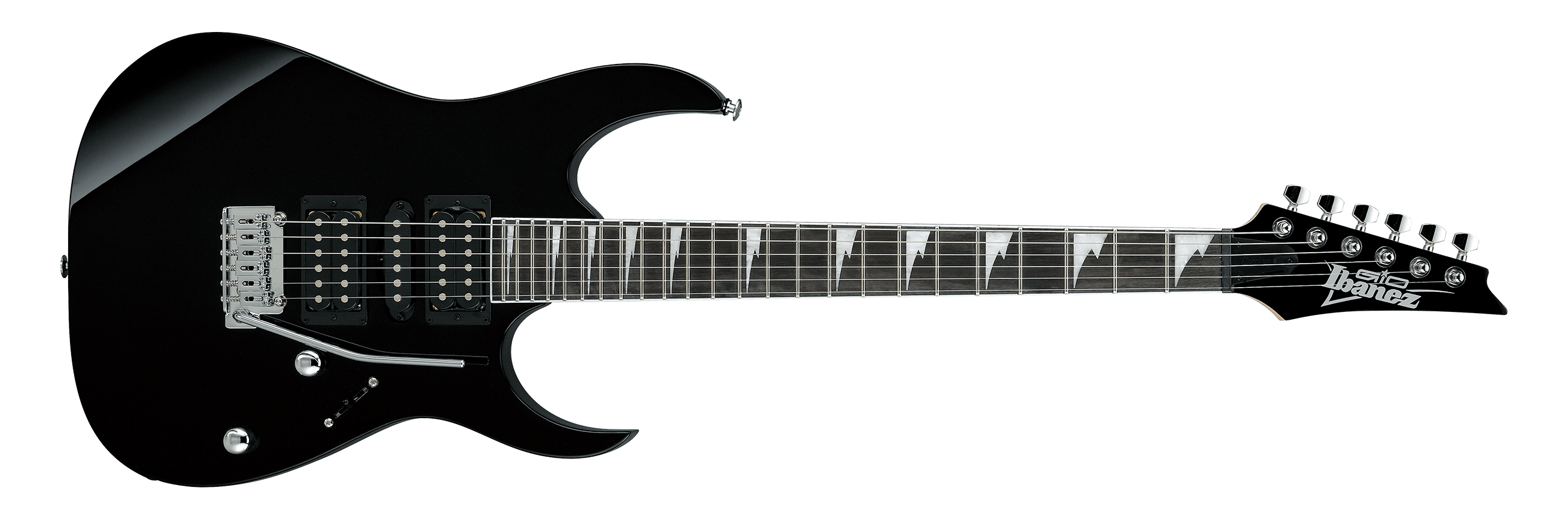

IBANEZ ELECTRIC GUITAR GRG170DX BKN

Description

DESCRIPTION:
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard

SPECS:
neck type GRGMaple neck
top/back/body Poplar body
fretboard Bound Purpleheart fretboardWhite Sharktooth inlay
fret Jumbo frets
number of frets 24
bridge T102 bridge
string space 10.5mm
neck pickup Infinity R (H) neck pickupPassive/Ceramic
middle pickup Infinity RS (S) middle pickupPassive/Ceramic
bridge pickup Infinity R (H) bridge pickupPassive/Ceramic
factory tuning 1E,2B,3G,4D,5A,6E
string gauge .009/.011/.016/.024/.032/.042
hardware color Chrome
NECK DIMENSIONS
Scale : 648mm/25.5″
a : Width 43mm at NUT
b : Width 58mm at 24F
c : Thickness 19.5mm at 1F
d : Thickness 21.5mm at 12F
Radius : 400mmR
